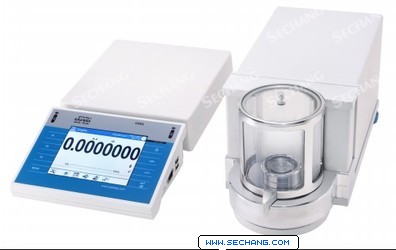

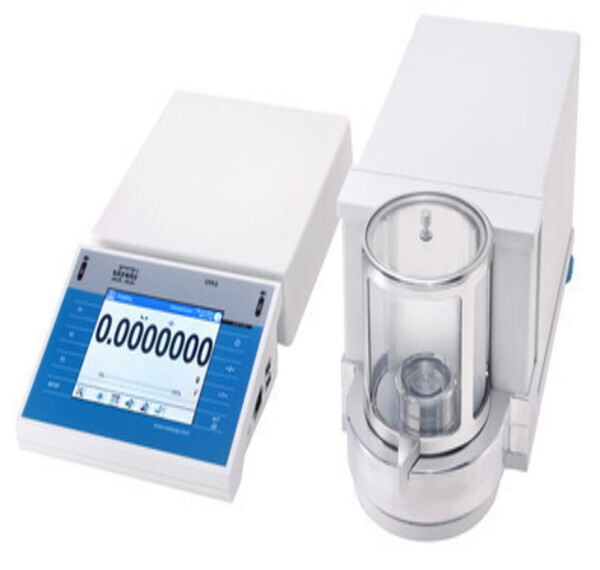

MODEL

UYA 2.3Y

Max capacity

2 g

Readability

0.1 µg

Repeatability

0.3 µg

Linearity

±1.5 µg

Sensitivity offset

1.5×10^-6×Rt

Sensitivity temperature drift

1×10^-6/°C×Rt

Sensitivity stability

1×10^-6/Year×Rt

Minimum weight (USP)

0.9 mg

Minimum weight (U = 1%, k = 2)

0.06 mg

Pan size

ø 16 mm

Weighing chamber dimensions

ø 90×90 mm

Stabilization time

10~20 s

Adjustment/calibration

internal (automatic)

Power supply

13.5 ~ 16 V DC / 2.1 A

Display

5.7 touch screen

Interface

2×USB, 2×RS 232, Ethernet, 2Inputs/2Outputs

Net weight/Gross weight

10.2/14.7 kg

Dimensions

370×160×173 mm

Working temperature

+18° ~ +30°C

Atmospheric humidity *

40% ~ 80%
