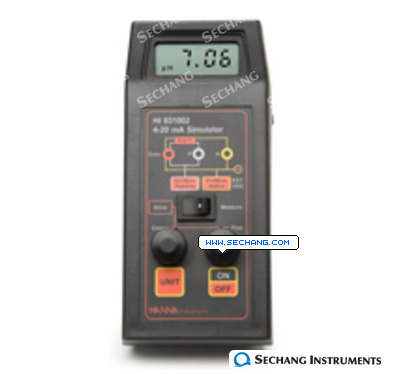

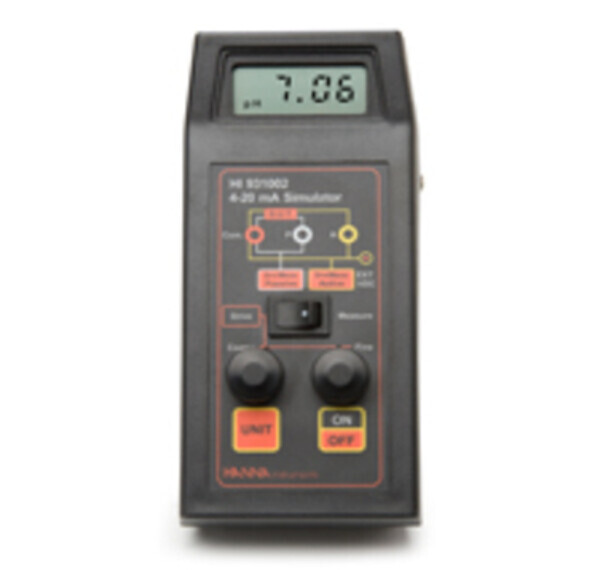

 특징 4-20mA Amperometer,simulator and calibrator 기능 Passive measurement/Tester mode:
HI 931002 practically becomes an Amperometer. It measures and displays the mA (or pH) values transmitted by the process meter.
Active measurement/Tester mode:
Same as above in addition to providing voltage to the 4-20 mA bus.
|
품명 |
HI-931002
|
|
범위 |
Active Drive
|
2.00 to 19.99mA; -1.50 to 14.00 pH |
|
Passive Drive
|
2.00 to 19.99mA; -1.50 to 14.00 pH
|
|
Active Measure
|
0.00 to 19.99mA; -3.50 to 14.00pH
|
|
Passive Drive
|
0.00 to 19.99mA; -3.50 to 14.00pH
|
|
분해능 |
0.01mA; 0.01pH |
|
정확도 @ 20°C
|
±0.01mA;±0.01pH |
|
입력저항 |
20ohm |
|
휴즈
|
5x20mm, 200mA, 250V
|
|
환경 |
0 to 50°C (32 to 122°F); RH max 95% |
|
치수 |
185 x 82 x 53 mm (7.3 x 3.2 x 2.1’’) |
|
무게 |
320 g (11.3 oz.) |
|
전원 |
9V / approximately 1600 hours of use |
