 특징 pH, PG13.5
0 to 80ºC
4Bar
Epoxy 적용분야 발효,멸균,살균처리 분야
|
품명 |

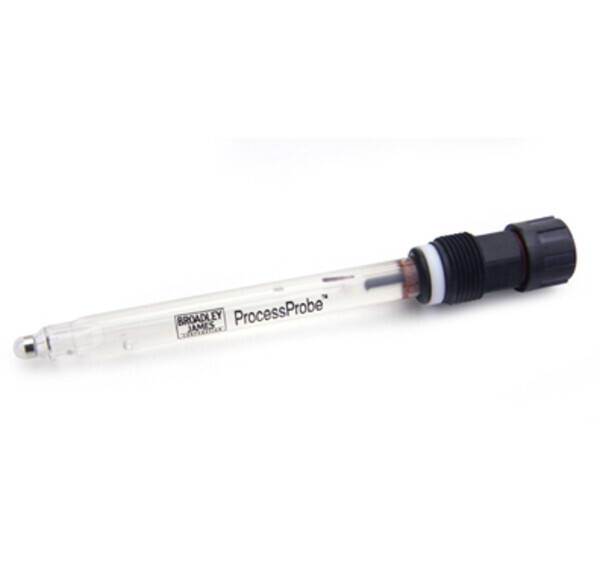

ProcessProbe™ Sensors with PG13.5 Threads
|
|
모델
|
SP100-4330-DH |
SP200-2330-DH
|
|
pH Bulb |
HT-3 Formula, Low Sodium Ion Error |
|
Reference |
Silver/Silver Chloride (Ag/AgCl) |
|
Reference Junction |
Precision made junction of specially formulated low porosity
ceramic |
|
Electrolyte |
3.8 Molar Potassium Chloride (KCl) Gel |
|
Isopotential Point |
pH 7 |
|
Output Signal per pH Unit @ 25ºC |
Approximately 59 millivolts |
|
Assymetry Potential |
0mV ±20mV |
Temperature Range
SP100 Series |
Operation: 0 to 80ºC |
-5 to 110ºC |
|
Stability |
Drift of less than 0.002 pH over 24 hours at constant
temperature & pressure |
|
Response Time at 98% of readout in |
25ºC less than15 seconds |
|
Response Time at 98% of readout in |
37°C less than 10 seconds |
|
Max Pressure SP100 Series |
4 bar (atm), 58 psig |
10 bar (atm), 150 psig |
|
Connector |
Standard Pg13.5 threaded cap with -S8 cable attachment. O-ring
sealed |
Wetted Materials
SP100 Series |
Glass, Ceramic, Epoxy, Silicone |
Glass, Ceramic |
