 특징 삽입형
DO Optical sensor

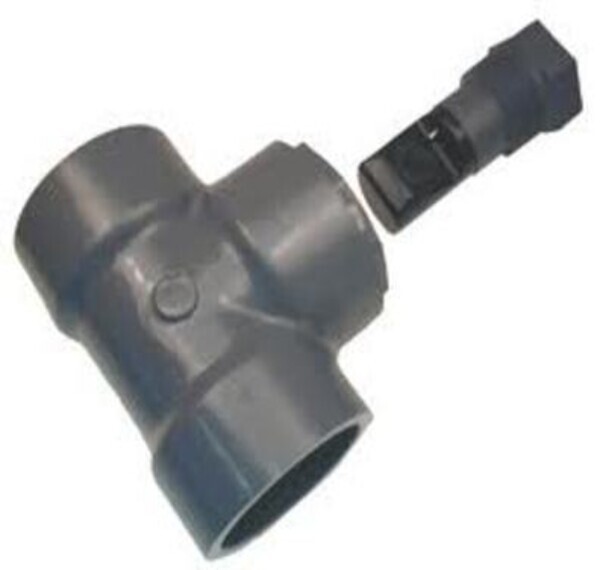

1000,2000,MPA48 insiteIG 제품적용 기능 The Model 10T Sensor is intended for inline Dissolved Oxygen monitoring utilizing a by-pass loop. The by-pass loop is generally configured using customer supplied full port ball valves on both sides of the tee. The supplied tee (as shown) is 3" Schedule 80 PVC, with slip connections. The integrated jet clean with this sensor includes an inline check valve. There is a flow indication groove on the back of the sensor mount that should be parallel with the flow.
|
센서 사양 |
|
센서재질 |
Epoxy, silicon, and polyurethane |
|
측정범위 |
DO
|
0.00 ~ 25.00 ppm
|
|
TEMP
|
0 ~ 60℃ |
|
최소사용유속 |
No flow Required |
|
센서 Drift |
Less than 1% per year |
|
측정원리 |
An Optical type sensor that measures the fluorescence and quenching reactions of a ruthenium complex that is immobilized in a sol-gel matrix. |
|
케이블 |
방수,방진, 방식 |
|
센서부 개략치수 |
117mm(L) X 48.26mm(Diameter) |
|
사용압력 |
최대 100 psi |
|
설치방법 |
탱크 삽입
및 수조에 침적형 |
|
센서케이블 |
25ft Cable (optional length up to 2000ft)
4 컨덕터, 22 AWG, 폴리우레탄 피복 |
Insite IG, Portable 관련 |
 |
|
|
|
