 특징 HF용 pH전극(분리형)
최대 1%HF
Operation: -5 to 110° C
케이블선택(옵션)
온도미보상전극
|
품명 |

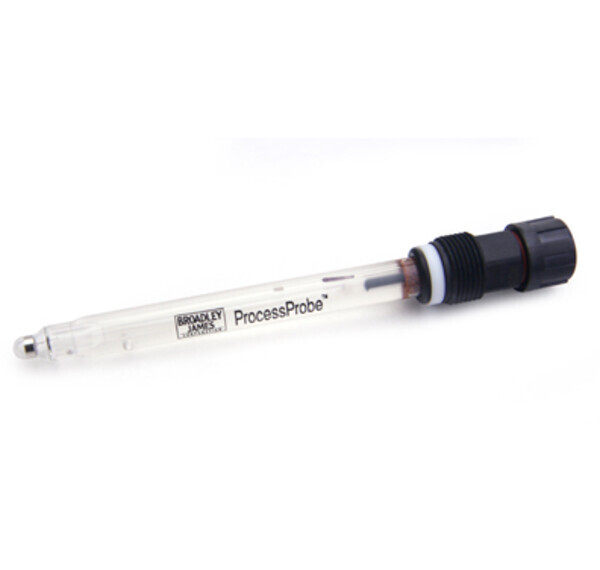

ProcessProbe™ Sensors with PG13.5 Threads
|
|
모델
|
SP200-2530-DH |
|
측정원리
|
Potentiometric
|
|
pH Bulb |
HF-Resistant |
|
Reference |
Silver/Silver Chloride(Ag/AgCl) |
|
Reference Junction |
Precision made junction of specially formulated low porosity
ceramic |
|
Electrolyte |
3.8 Molar Potassium Chloride (KCl) Gel |
|
Isopotential Point |
pH 7 |
|
Output Signal per pH Unit @ 25ºC |
Approximately 59 millivolts |
|
Assymetry Potential |
0mV ±20mV |
Temperature Range
|
Operation: 0-5to 110ºC |
|
Stability |
Drift of less than 0.002 pH over 24 hours at constant
temperature & pressure |
|
Response Time at |
25ºC less than15 seconds |
|
Response Time at |
25ºC
|
less than 15 seconds |
|
37ºC
|
less than 10 seconds |
|
Max Pressure SP200 Series |
10 bar (atm), 150 psig |
|
Connector |
Standard Pg13.5 threaded cap with -S8 cable attachment. O-ring
sealed |
Wetted Materials
SP200 Series |
Glass, Ceramic |
SP200-2530-DH 관련 |
 |
|
|
