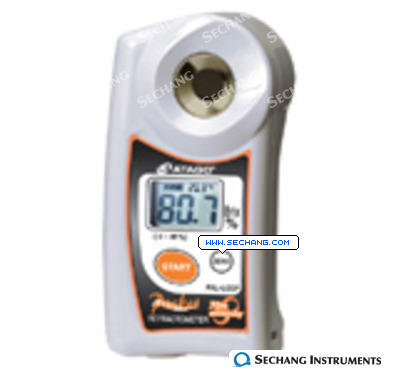

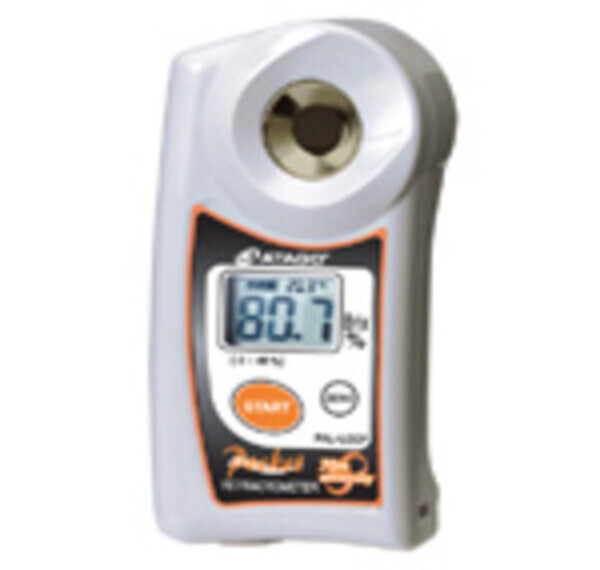

 특징 일반 및 연속측정 Continuous Measurement 적용분야 Released on ATAGO's 70th Anniversary, the PAL-LOOP is a special model with new Continuous Measurement feature to give you extra method tailored to meet your needs - select either the new continuous and conventional single measurement mode. Since the measurement range of PAL-LOOP is Brix 0.0 - 85.0%, it can be used to measure almost any samples. 기능 단일측정 모드에서 연속측정 모드 선택
거의 모든 샘플 측정 가능
| Model | PAL-LOOP | Cat.No. | 3842 | | Measurement mode | 1. Regular (single measurement)
2. Continuous (measure and display repeatedly) | | Measurement Range | Brix 0.0 to 85.0%
Temperature 10.0 to 100°C | Resolution | Brix 0.1%
Temperature 0.1°C | | Measurement Accuracy | Brix ±0.2%
Temperature ±1°C | Ambient Temperature | 10 to 40°C | | Measurement Temperature | 10 to 100°C
(Automatic Temperature Compensation) | Sample Volume | 0.3ml or more | | Power supply | AAA alkaline battery × 2 | | MeasurementTime | 3 seconds (Regular mode)
1 second (Continuous mode) | Dimensions & weight | 55(W) ×31(D)×109(H)mm, 100g (Main Unit only) |
굴절계 관련 |
 |
|
|
|
|
|
|
|
|
|
|
| 궁금하신 점에 대해 해당 분야의 전문가가 상담해드립니다. 제품문의 버튼을 누르시면 입력폼이 출력됩니다.
담당자의 이름을 클릭하시면 직통 번호를 확인하실 수 있습니다. |
 |
|
|
|
