 특징 ORP,±5000 mV
PG13.5
0 to 80ºC
4Bar
Epoxy 적용분야 공업용,산업용 분야
|
품명 |

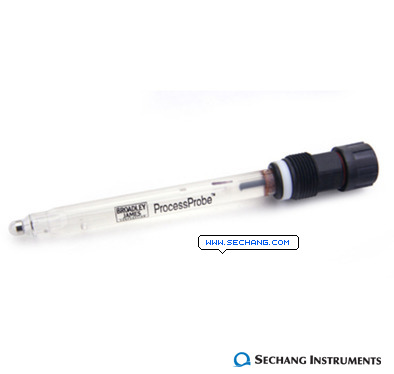

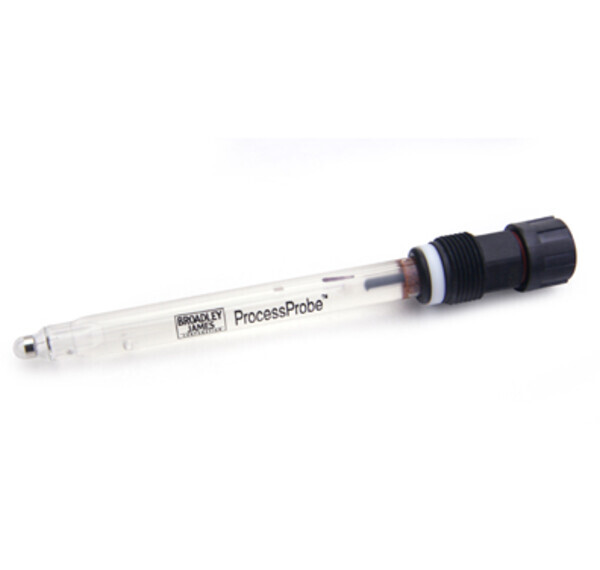

ProcessProbe™ Sensors with PG13.5 Threads
|
|
모델
|
SP100-4PB0-DH |
SP200-2PB0-DH
|
|
ORP Tip |
Glass with Platinum band |
|
Reference |
Silver/Silver Chloride (Ag/AgCl) |
|
Reference Junction |
Precision made junction of specially formulated low porosity
ceramic |
|
Electrolyte |
3.8 Molar Potassium Chloride (KCl) Gel |
|
Redox Range |
±5000 mV |
Temperature Range
SP100 Series |
Operation: 0 to 80ºC |
-5 to 110ºC |
|
Max Pressure SP100 Series |
4 bar (atm), 58 psig |
10 bar (atm), 150 psig |
|
Connector |
Standard Pg13.5 threaded cap with -S8 cable attachment. O-ring
sealed |
Wetted Materials
SP100 Series |
Glass, Ceramic, Epoxy, Silicone |
Glass, Ceramic |
