모델명

XL5

무게

1.3 kg

크기

242.56 x 208.17 x 67.9 mm

튜브

Ag anode (6-50kV, 500uA max, 5W max)

Dynamically adjustable current for optimal sensitivity for every analysis

감지부

Geometrically Optimized Large Area Drift Detector (GOLDD) Proprietary detector with up to 180,000 cps throughput

Typical Resolution: 150 ev- 185 eV depending on shaping time used

시스템 전자 장치

iMX6 quad core ARM A9 running at 800 MHz

80 MHz ADC ASIC for digital pulsed processing

4096 channel MCA

512 MB internal system memory / 16 GB industrial grade storage

디스플레이

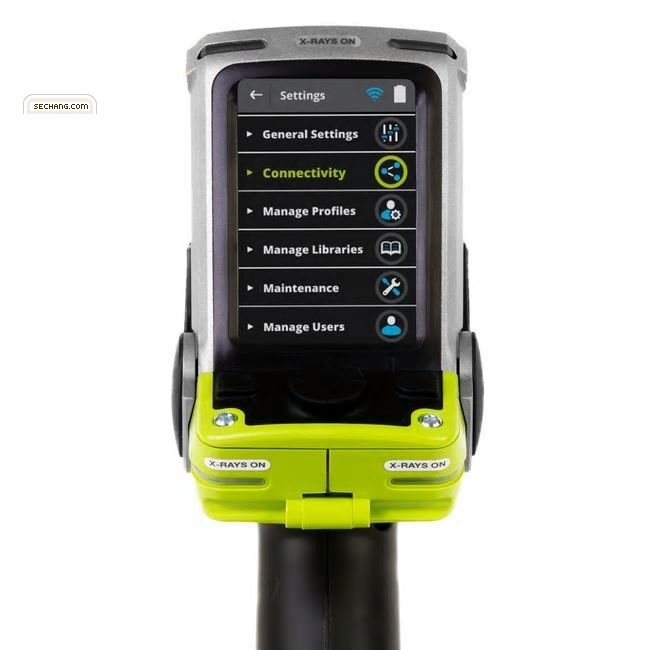

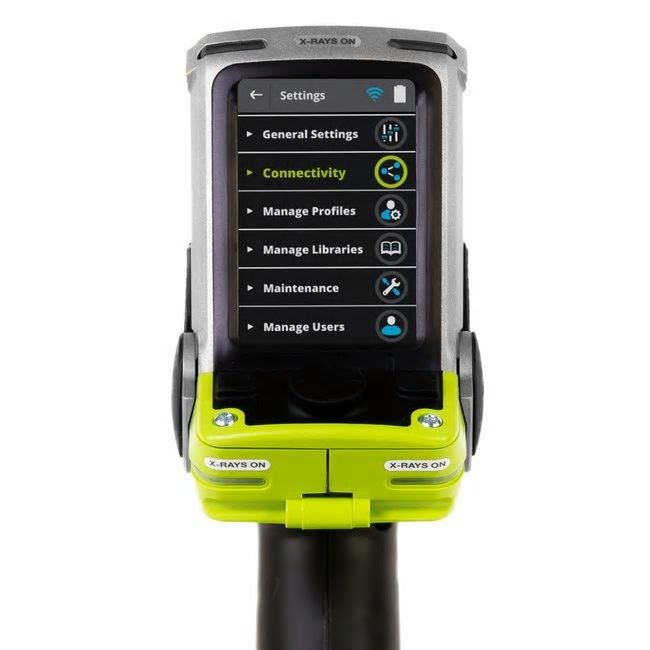

Tilting, color, touch-screen display

표준 합금 분석 범위

More than 30 common elements for rapid alloy identification

Ultra-low light element detection

데이터 저장

130,000 readings with spectra (fewer, if micro and macro images are saved)

Assumes 13 GB of user data storage, 100 kB per spectrum

데이터 전송

WiFi, USB, Bluetooth (to support print functionality)

보안

Password-protected user security

Global Positioning

GPS data included with sample information

사용가능한 모드

General Metals, Precious Metals, Coatings, Spectral Fingerprint)

데이터 입력

Touch-screen keyboard

User-programmable pick lists

Customizable data field sets

카메라

Integrated CCD Macro Camera for capturing overview images of parts and tagging measurement locations

Integrated CCD Micro Camera for locating and recording measurement positions

언어

English, Spanish, French, German, Chinese, Japanese, Russian

옵션 액세서리

3mm small-spot collimation

Thermo ScientificTM portable test stand

Belt holster

HotWork stand off

라이선스/등록

지역에따라 다름

준수

CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010, IP54
