Analyzer

품명

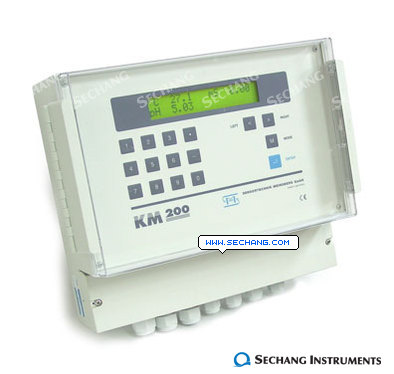

Process Dissolved Oxygen Analyzer

모델

KM-200

화면표시

대형 LCD (2 x 20 digits )

측정항목

Dissolved Oxygen;
Option : pH, Redox Potential(ORP)/ Conductivity/ Temperature/ Turbidity

Amplifier Module
(MV230S)

Dissolved Oxygen Amplifier-Module;
0 ~ 50ppm

Analogue input

3 inputs 0/4 ~ 20mA

Analogue output
(DAC200)

4 Free scalable analogue outputs,
0/4 ~ 20mA, isolated,

온도보상

해당 측정항목에 따라 자동온도보상

Relay Output

4 Limit or Alarm Relay

외함

integrated plastic case (polystyrole)
with separate strip compartment, watertight

등급

IP 65

EMC interference
transmission

Generic Standard EN 50081-1

EMC Disturbance

Generic Standard EN 50082-1 and EN 50082-2

전원

230 V AC , 50~ 60 Hz; 24 VA or 110VAC

출력사용환경

- 10 ~ 50℃

크기

302(W) x 260(H) x 122(D) ㎜

Dissolved Oxygen Sensor

품명

Process Dissolved Sensor

모델

MF39.1SMEK

재질

PVC, stainless steel, silicon

크기

18mm(Dia), immersion length 120mm

측정범위

0 ~ 60mg/L(15℃); 0 ~ 200% air-saturation

분해능

< 0.1mg/L

반응시간

t₉₀ < 180 s at 25℃

Flow Dependency

< 5% at 25℃

Operating Temp.

-5 ~ +50℃

압력

max. 3 bar (43.5 psi)

온도센서

incorporated Pt 1000
for automatic temperature compensation
and temperature measurement 0 ~ 50℃

Electrical connection

multipin SixPlug plug head connection system;
protection rating IP67

Process connection

PG 16 threaded sensor body for installation in immersion and flow-through housings;
INSTALLATION VERTICALLY
or LATERALLY UP TO 30 DEGREE FROM VERTICAL
