| 소비자 가격 : \21,040,000 (부가세 별도) |
 |
|
|
|
|
|
|
|
|
|
| |
 특징 Dual Channel 측정기
pH, ORP, Conductivity, Temp, DO, Salinity, Turbidity 측정가능 적용분야 수처리시설, Pilot 시설, 생산공정, 양어장과 수소이온농도의 측정공업, 생물, 제약, 음료, 식료품현장 기능 pH, ORP, 전도도, 온도, DO, 염도, 탁도 측정가능.
Dual Channel로 동시 2개 항목 측정 가능

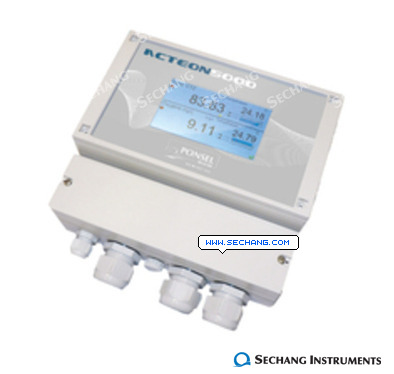

| transmitter ACTEON 5000
Features. |
| Digital sensor |
2 inputs digital sensor |
| 2 anlalog input |
In mode 0/4-20 mA or 0-10 V |
| 2 relay input |
Function of transfer on exit(release) TOR
Information of external
cleaning system : swing in maintenance mode |
| 2 analog outputs |
Choice of 2 parameters programmable according to the
connected sensor |
| 2 digital outputs /relay |
NO/NF customizable
Instruction point: setting of the
measuring range
(Hysteresys / activation way) and time of activation,
Command
for external cleaning system
Output alarm for defect material sensor
|
| Data recording |
Internal flash memory
Frequency recording: 1-120 mn
Recording
journal of events, measure sensors
|
| Atmospheric pressure sensor |
To compensate oxygen pression |
| Display |
Backlit graphic LCD touch Screen – Size95x54 mm |
| Analog outputs |
0/4.00 – 20.00 mA with galvanic isolation Charge max
250 W |
| Relay outputs |
6 A /250 V |
| Operating conditions |
Temperature : -15°C to + 50 °C
Temperature of storage/transport
: -15°C to + 50°C |
| USB port |
Unloading of the recorded dat |
| Power/ Electrical protections |
100-240 V AC/DC 50-60 Hz
- Option 9-28 V DC/DC
-
Electrical protection: consistent EN61010-1 :2010
|
|
