Specifications

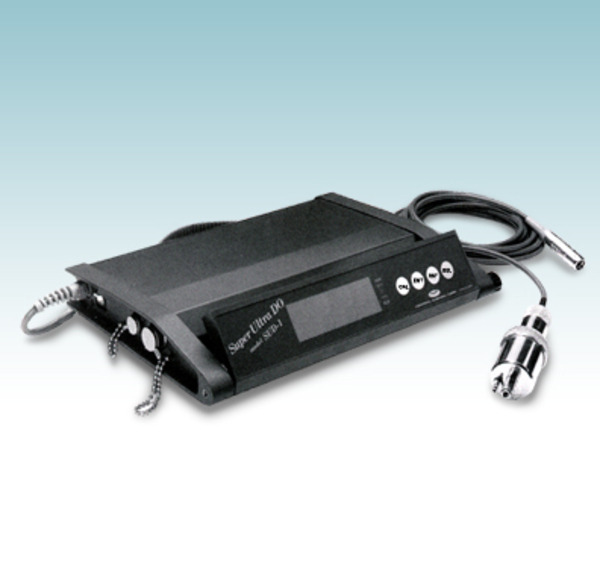

*품명 : 초순수용 용존산소량계 메타
모델 : SUD-1
측정범위 :
    DO : 0 ~ 19.99ppb, 0 ~ 199.9ppb
         0 ~ 1.999ppm, 0 ~ 19.99ppm
    Temp.: -5 ~ +55℃
    Pressure : 700 ~ 800mmHg
분해능(DO) : ±0.01ppb ±1 digit (at 25℃)
온도보상범위 : 0 ~ 50℃
교정 : Auto Calibration, Auto atmospheric calibration,
       electrical zero, span(air calibration)
출력(DO) : 0 ~ 10mV, 0 ~ 1V, 1 ~ 5V, 4 ~ 20mA
           (selected when installed)
           Isolation output, range discrimination ID output
           RS-232C (옵션)
경보(DO) : DO upper limit 1-point alarm
           (Contact capacity: DC24V, 0.5A)
전원 : AC90 ~ 240V, 50/60Hz
소비전력 : 10W
표시부 : 25mm digital LED (3-1/2digits)
크기 : 310W×234D×57H mm
무게 : approx. 3kg
규격 : Drip-proof protable panel, can be mounted on wall,
       built into panel or placed on desk
사용환경 : 온도 : 0 ~ 50℃
           습도 : 85% RH  or Less

*품명 : 폴라로그래픽 용존산소량계 전극
모델 : P-DO Electrode
측정원리 : Polarographic
최소측정범위 : 0.5ppb (under constant conditions)
정밀도 : ±1% (saturated ouutput in air at 25±)
반응시간 : 90%, 20초 이내
0점반응시간 : within 10min, for 10ppb or less
사용온도 : 0 ~ 50℃
사용압력 : 0 ~ 5.0kg/㎠
크기 : 20(Ф) × 101(L) mm
케이블 : 5m
Sample flow : 50mL/min (recommended value for flow cell chamber,
              but measurement possible at 20mL/min or more)
Flow cell chamber : SUS 316L, 5mL volume (with sensor)
