Sechang Instruments Product Catalog

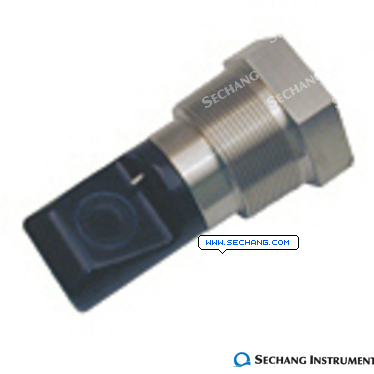

  용존산소 센서 >>  모델 : Model 10PI

재고여부 : 30일 이내

특징
삽입형
DO Optical sensor
1000,2000,MPA48 insiteIG 제품적용

기능
The Model 10PI Sensor is intended for inline monitoring in a large diameter pipe. The mount is 2" NPT thread in 316 stainless steel that works with a customer supplied 2" Thread-O-Let. The integrated jet clean with this sensor includes an inline check valve. There is a flow indication groove on the back of the sensor mount that should be parallel with the flow.

센서 사양

센서재질

Epoxy, silicon, and polyurethane

측정범위

DO

0.00 ~ 25.00 ppm

TEMP

0 ~ 60℃

최소사용유속

No flow Required

센서 Drift

Less than 1% per year

측정원리

An Optical type sensor that measures the fluorescence and quenching reactions of a ruthenium complex that is immobilized in a sol-gel matrix.

케이블

방수,방진, 방식

센서부 개략치수

117mm(L) X 48.26mm(Diameter)

사용압력

최대 100 psi

설치방법

탱크 및 수조에 침적형

센서케이블

25ft Cable (optional length up to 2000ft)
4 컨덕터, 22 AWG, 폴리우레탄 피복

구성내역

구성품 NO.1
