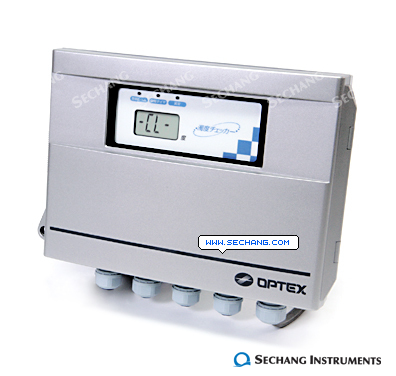

  SS 측정기 >>  모델 : SC-T4

재고여부 : 30일 이내

특징
Optex TC 시리즈용
SS 컨트롤러/모니터


Model No. SC-T4(For TCS-1000)
Power 50/60Hz
Power consumption Normal: 8VA or less, during washing: 16VA or less
(including detector, at the time of analog signal input/output of 20mA)
Display resolution 0.1mg/l(0-49.9mg/1)
1mg/l(50-1000mg/l)
Output Calibration Output
Power Supply for Sensor (12 VDC)
Signal Output (analog 4-20mA, resistance load of 300Ω or less)
Self-checking Relay Output (non-voltage C-contact capacity 240 VAC, 1A resistance load)
Alarm Relay Output (non-voltage C-contact capacity 240 VAC, 1A resistance load)
Input (detector) Detector signal input (analog 4-20mA, input resistance approx.100)
Self-checking input
Operating temperature range -20 to +50 C・, humidity 95%Rh or less (Avoid direct sunlight)
Main material Polycarbonate
Size HxWxD = approx.162x240x75 mm
Mass Approx. 1.6kg (including Mounting Brackets)
Protective structure IP65 (jetproof type)

구성내역

구성품 NO.1
