특징
0 to 100% RH(습도)
-50°C to +50°C (온도)
Output: 4-20 mA
Solar Shield(WE770포함)

기능
Solar Shield is a ventilated sun
shield, with high reflectiveness, low heat retention, and
low thermoconductivity. The unit is designed to protect
the Global Water Humidity and Temperature sensors from
direct sunlight that may affect the sensor's 4-20 mA
output.

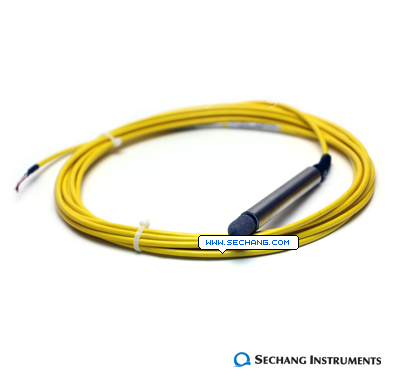

Humidity Sensor

Type: Capacitance

Output: 4-20 mA

Range: 0 to 100% RH

Accuracy: ±2% RH

Operating Voltage: 10-36 VDC

Current Draw: 3mA plus sensor output

Warm Up Time: 3 seconds minimum

Operating Temp: -40° to +55°C

Sensor Size: 1 1/2" diameter x 7"

Weight: 1/2 lb.



Temperature Sensor

Type: Precision RTD

Output: 4-20 mA

Range: -50°C to +50°C

Accuracy: ±0.2°F or ±0.1°C

Operating Voltage: 10-36 VDC

Current Draw: Same as sensor output

Warm Up Time: 5 seconds minimum

Operating Temp: -50° to +100°C

Sensor Size: 3/4" diameter x 4 1/2"

Weight: 1/2 lb.



Solar Shield

Size: 4" diameter x 8 1/2"

Weight: 1 lb.
